The
pre-existing concept of sorting is called "Pin
point" method which CCD sensor detects the
fault by scanning the materials in cross-way only.
However, for the ROYAL Series, we have proudly applied
the most up-to-dated technology called "IMAGE
PROCESSING METHOD". The advantage of this method
is that it creates actual images of the raw materials
by scanning both cross and vertical ways. Based
on the actual images scanned by the CCD Camera,
it will accordingly analyze and discriminate the
defects in the most accurate way that has been ever
existed.
|

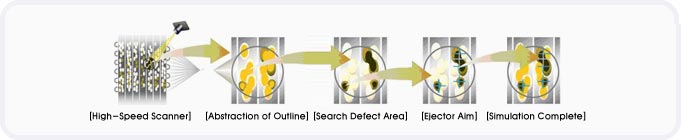

Simulation
for Image Processing Methods
1. Making images of raw material by high-speed
scanner.
2. Digitalize the made (scanned) images.
3. Sets criterion of genuine and faulty
raw materials.
4. Based on the inputted criterion, the
ejector will aim the center part of the
faulty raw material to maximize the ejecting
accuracy.
|
 |
 |
|

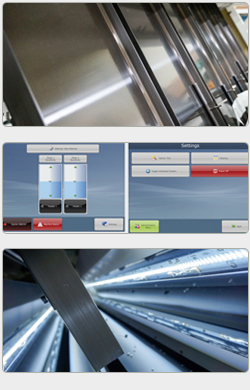

Special
Coated 64channeled Flat Chutes
The surface of the chute is specially
coated to less the dispersion of raw material
that could possibly occur by the friction
when the raw material slides down the
chutes. This special chute will definitely
maximize the productivity and will increase
the profit of the users.
10.4
inch Sized TFT-LCD Touch Screen with Microsoft
Windows CE Platform
The platform are designed to use for internal
system(Embedded System) with 10.4" Color
TFT LCD (640 x 480) and touch screen interface.
Various functions are applied such as
10/100T Ethernet, serial(Rs232/422), Parallel,
SB Host/Device and Audio. Basically, this
platform can provide every interfaces
that may provide from the current existing
PC board may provide.
Application
of a 'NEW CONCEPT' of Light Source, "LED
TECHNOLOGY"
This
is another pride of us and is a newly
introduced to the world by us. For the
ROYAL Series, a sensationally advanced
light resource has been applied which
is called LED(LIGHT EMITTING DIODE) Light
Source. It will provide; 1) Satisfactory
sorting results by stable intensity of
illumination 2) Over 50,000 hours(semi
permanent) of life period and no need
to replace them periodically like the
currently existing type (ex: fluorescent
lamp / tube lights) 3) Realization of
various light colors (any kind of color
can be realized) 4) Free from the affects
of the surrounding temperatures that used
to cause the trouble of light brightness.
NIR
Technology (optional)
By
adoption of NIR (Near Infra-red), sorting
out even transparent materials such as
glass, resin and PET is possible.
|
 |
 -
Full color Camera can identify any color or shade precisely even with the slightest color variation based on Tri-chromatic Technology.
With A-Mecs Technology,High Tech Full color camera serve optimum algorism based on accumulated big data and recognize shape differences in addition to color.
Different Size.Shape etc. can be identified by this High Tech Camera using high resolution optical sensor and image processing technology can give best sorting results.
 -
-
CCD + NIR TYPE
- By adopting NIR(Near Infrared), sorting out even transparent materials such as glass, resin, PET is possible.(Optional)
-
REMOVED BY NIR
- Foreign materials : Plastic, glass, ceramic, stones
|
|
|
|
|
|
 |
 |
|
